Industrial High Bay Light For Warehouse Emergency Commercial Light Fixtures
Product Description

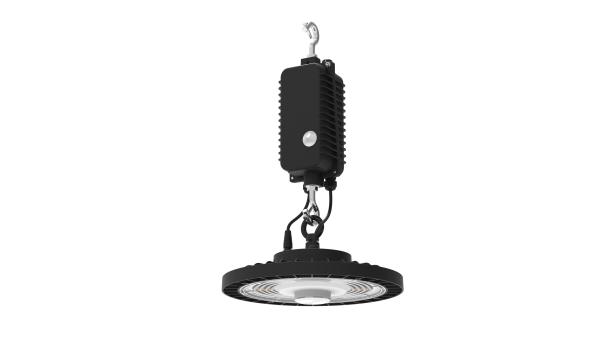

This is a unique design emergency UFO high bay light, its emergency pack is external, designed for the high bay luminaires with integrated LEDs. It is suspended with a luminaire to provide a back-up supply in the event of the power cut. This emergency pack requires a permanent live un-switched supply to maintain the battery charge. In the event of the power cut, the battery will supply the integrated LEDs at rated output. This emergency pack, its installation is very simple, only need to plug in a 4-pin cable, then it is done, greatly reducing the number of connection lines, so that the entire emergency high bay light looks clean and tidy. UFO LED High Bays have a sleek, robust design that meets a variety of application needs, such as warehouses, factory, supermarkets, retail stores, gyms and garages and many other applications.
Wattage selectable UFO high bay data sheet.pdf
Features
●15W/20W/30W selectable power for emergency version
●For LED modules with a wide voltage 30-150VDC
●Tow gears for adjustingmaximum output voltage:60V/150V
●Equipped with IP65 certified water-proof connector
●1.5 hours or 2 hours or 3 hours rated duration
●Battery LiFePO4 12.8V 6Ah
●Easy wiring for UFO high bay light
●Suitable for wet locations, IP65 rated
●Operation Condition temp:-0°C-45°C
●Plug and Play PIR or microwave sensor
●Options for DALI or 1-10V dimming
Specification
| Model | Power | Light efficiency | Luminous Flux | Input Voltage | Dimension | IP code | Warranty |
| KS-UFO-HBD-N100W | 100W | ≥150lm/w | 15000LM | AC100-240V | Ø280*H132 mm | IP65 | 5 year |
| KS-UFO-HBD-N150W | 150W | ≥150lm/w | 22500LM | AC100-240V | Ø340*H140.2 mm | IP65 | 5 year |
| KS-UFO-HBD-N200W | 200W | ≥150lm/w | 30000LM | AC100-240V | Ø400*H145.2 mm | IP65 | 5 year |
Wiring
